Rclone§

Rclone is a command-line program to manage files on cloud storage. This is a walkthrough for configuring Rclone to be used with Microsoft OneDrive but it also can be used with several other cloud systems like Dropbox, Google Drive, etc.

We have installed 2 versions of rclone in our clusters. rclone/1.61.0 was used as reference for this walkthrough but the process is similar with other versions.

After loading the module with the command:

module load rclone/1.61.0 ,

the next step is to configure RClone. As the cloud systems usually have quite complicated authentication methods, these are kept in a config file. For example, the configuration file for OneDrive and Dropbox involve getting a token from Microsoft and Dropbox respectively, to link your account in the cloud system with Rclone. There are several ways to get this token and here is presented the easiest. If this method does not work for you, please contact our support: [rc-support@ucl.ac.uk]

The method that allows an automatic way to get and add the token to the configuration file requires to uses X-Forwarding in your ssh connection. This will allow to the cluster to push an interactive window to your local computer over a network. In this window you will enter your credentials and connect to the account you want to link with Rclone (e.g. Microsoft One Drive or Dropbox). If you have activated MFA in your account, it will ask you for the respective code. Note that the connection to internet could not the best and it might take a while to load the page.

X-Forwarding in Linux§

If you are using linux, the X-Forwarding is very easy. Just add -X option to your ssh command like this:

ssh -X USER@CLUSTER.rc.ucl.ac.uk

X-Forwarding in Mac§

If you are using Mac, there is an app called *XQuartz you must donwload first and then use the -Y option with the ssh command to allow X-forwarding.

X-Forwarding in Windows§

If you are using Windows, you need to install an X server separately. The use Xming with Putty* is suggested to configure Rclone, although you can use your preferred method. You can download Xming-fonts free from here. Once you download it and install it, you must open Xming** in your computer before connecting to ssh. The application is always working on the background so you will see anything opening after click on it.

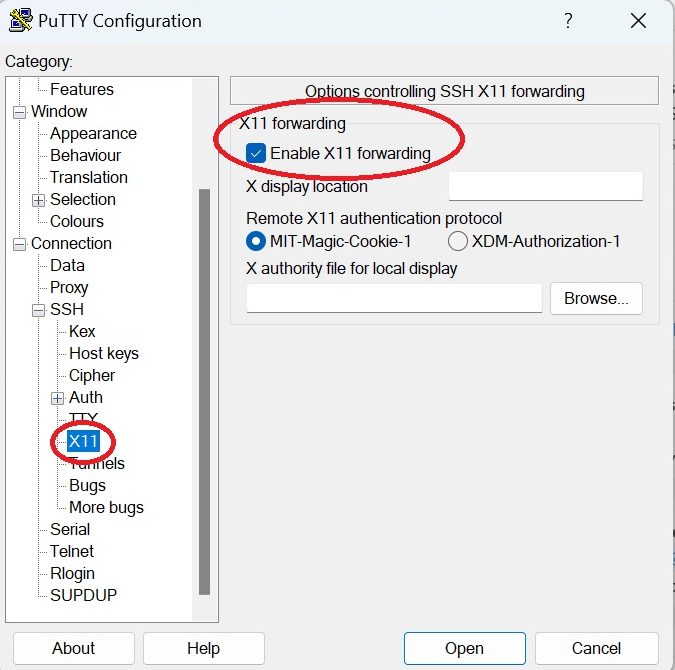

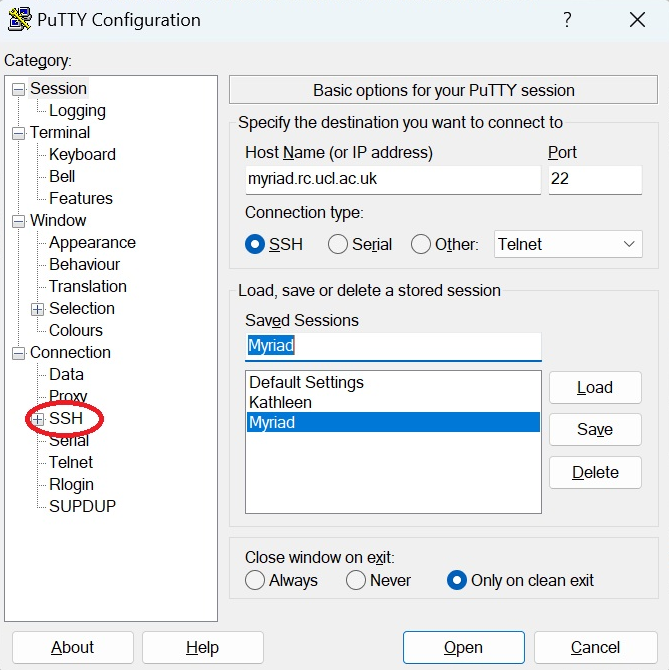

Then, to connect to ssh we suggest to use Putty unless you know how to allow the X-forwarding with another method. To configure Putty to use x-Forwarding, you must look at the left side panel and go to SSH category. Then select X11 and in there tick on Enable X11 forwarding (the box must be blue). Then enter the details to connect to the cluster in the main window and that's all! If you are loading a previous saved session, then load the session first and then enable the X-Forwarding.

After you have allowed X-Forwarding, you are ready to configure Rclone.

Rclone and OneDrive§

After loading the Rclone module, run in the command line:

module load rclone/1.61.0
rclone config

The following menu and options will be displayed:

1.

No remotes found, make a new one?
n) New remote
s) Set configuration password
q) Quit config
n/s/q>

Select n and press Enter Key

2.

Enter name for new remote.
name>

Enter the name of your own choose for your remote connection and press Enter key.

Something similar to this will be displayed. Please check what number corresponds to Microsoft OneDrive option and enter that one.

Option Storage.Type of storage to configure.
Choose a number from below, or type in your own value.
1 / 1Fichier   \ (fichier)
2 / Akamai NetStorage   \ (netstorage)
3 / Alias for an existing remote   \ (alias)
4 / Amazon S3 Compliant Storage Providers including AWS, Alibaba, ArvanCloud, Ceph, ChinaMobile, Cloudflare, DigitalOcean,
    Dreamhost, GCS, HuaweiOBS, IBMCOS, IDrive, IONOS, LyveCloud, Leviia, Liara, Linode, Magalu, Minio, Netease, Outscale,
    Petabox, RackCorp, Rclone, Scaleway, SeaweedFS, Selectel, StackPath, Storj, Synology, TencentCOS, Wasabi, Qiniu and others   \ (s3)
5 / Backblaze B2   \ (b2)
6 / Better checksums for other remotes   \ (hasher)
7 / Box   \ (box)
8 / Cache a remote   \ (cache)
9 / Citrix Sharefile   \ (sharefile)
10 / Cloudinary   \ (cloudinary)
11 / Combine several remotes into one   \ (combine
12 / Compress a remote   \ (compress)
13 / Dropbox   \ (dropbox)
14 / Encrypt/Decrypt a remote   \ (crypt)
15 / Enterprise File Fabric   \ (filefabric)
16 / FTP   \ (ftp
17 / Files.com   \ (filescom)
18 / Gofile   \ (gofile)
19 / Google Cloud Storage (this is not Google Drive)   \ (google cloud storage
20 / Google Drive   \ (drive)
21 / Google Photos   \ (google photos)
22 / HTTP   \ (http)
23 / Hadoop distributed file system   \ (hdfs)
24 / HiDrive   \ (hidrive)
25 / ImageKit.io   \ (imagekit)
26 / In memory object storage system.   \ (memory)
27 / Internet Archive   \ (internetarchive)
28 / Jottacloud   \ (jottacloud)
29 / Koofr, Digi Storage and other Koofr-compatible storage providers   \ (koofr)
30 / Linkbox   \ (linkbox)
31 / Local Disk   \ (local)
32 / Mail.ru Cloud   \ (mailru)
33 / Mega   \ (mega)
34 / Microsoft Azure Blob Storage   \ (azureblob)
35 / Microsoft Azure Files   \ (azurefiles)
/ Microsoft OneDrive   \ (onedrive)
37 / OpenDrive   \ (opendrive)
38 / OpenStack Swift (Rackspace Cloud Files, Blomp Cloud Storage, Memset Memstore, OVH)   \ (swift)
39 / Oracle Cloud Infrastructure Object Storage   \ (oracleobjectstorage)
40 / Pcloud   \ (pcloud)
41 / PikPak   \ (pikpak)
42 / Pixeldrain Filesystem   \ (pixeldrain)
43 / Proton Drive   \ (protondrive)
44 / Put.io   \ (putio)
45 / QingCloud Object Storage   \ (qingstor)
46 / Quatrix by Maytech   \ (quatrix)
47 / SMB / CIFS   \ (smb)
48 / SSH/SFTP   \ (sftp)
49 / Sia Decentralized Cloud   \ (sia)
50 / Storj Decentralized Cloud Storage   \ (storj
51 / Sugarsync   \ (sugarsync)
52 / Transparently chunk/split large files   \ (chunker
53 / Uloz.to   \ (ulozto)
54 / Union merges the contents of several upstream fs   \ (union)
55 / Uptobox   \ (uptobox)
56 / WebDAV   \ (webdav)
57 / Yandex Disk   \ (yandex
58 / Zoho   \ (zoho)
59 / iCloud Drive   \ (iclouddrive)
60 / premiumize.me   \ (premiumizeme)
61 / seafile   \ (seafile)
Storage>

In this case,Microsoft OneDrive corresponds to the option 36, so enter 36 and press Enter key.

4.

Option client_id. OAuth Client Id.
Leave blank normally.
Enter a value. Press Enter to leave empty.
client_id>

Press Enter key to leave empty.

5.

Option client_secret. OAuth Client Secret.
Leave blank normally.
Enter a value. Press Enter to leave empty.
client_secret>

Press Enter key to leave empty.

6.

Option region. Choose national cloud region for OneDrive.
Choose a number from below, or type in your own value of
type string.
Press Enter for the default (global).
1 / Microsoft Cloud Global   \ (global)
2 / Microsoft Cloud for US Government   \ (us)
3 / Microsoft Cloud Germany (deprecated - try global region first).   \ (de)
4 / Azure and Office 365 operated by Vnet Group in China   \ (cn)
region>

Select 1 and press Enter Key

Option tenant.ID of the service principal's tenant. Also called its directory ID.
Set this if using- Client Credential flowEnter a value.
Press Enter to leave empty.
tenant>

Press Enter to leave empty

8.

Edit advanced config?
y) Yes
n) No (default)
y/n>

Select n and press Enter key.

9.

Use web browser to automatically authenticate rclone with remote?
* Say Y if the machine running rclone has a web browser you can use
* Say N if running rclone on a (remote) machine without web browser access
If not sure try Y. If Y failed, try N.
y) Yes (default)
n) No
y/n>

Select y and press Enter key.

If you have installed Xming and habilitated correctly X-Forwarding in Putty or your preferred method, then a window will open in your perosnal machine. There, you must log in, in this case into Microsoft using your UCL account (internal).

10.

Option config_type.Type of connectionChoose a number from below,
or type in an existing string value.
Press Enter for the default (onedrive).
1 / OneDrive Personal or Business   \ (onedrive)
2 / Root Sharepoint site   \ (sharepoint)   / Sharepoint site name or URL
3 | E.g. mysite or https://contoso.sharepoint.com/sites/mysite   \ (url)
4 / Search for a Sharepoint site   \ (search)
5 / Type in driveID (advanced)   \ (driveid)
6 / Type in SiteID (advanced)   \ (siteid)   / Sharepoint server-relative path (advanced)
7 | E.g. /teams/hr   \ (path
config_type>

Select 1 and press Enter key.

11.

Option config_driveid. Select drive you want to use
Choose a number from below, or type in your own string value.
Press Enter for the default (b!ra4Fi4CqS0GYT_qied1OV9A2pTgX9JxHhfZTS2MwNK-0r_cRHFddS7D8Yt0CozO-).
1 / OneDrive (business)   \ (b!ra4Fi4CqS0GYT_qied1OV9A2pTgX9JxHhfZTS2MwNK-0r_cRHFddS7D8Yt0CozO-)
2 / PersonalCacheLibrary (business)   \ (b!ra4Fi4CqS0GYT_qied1OV9A2pTgX9JxHhfZTS2MwNK9-7X_uAf71Qavjc1vd7Xis)
config_driveid>

Select 1 and press Enter key.

12.

Drive OK Found drive "root" of type "business"
URL: https://liveuclac-my.sharepoint.com/personal/<YOUR_UCL_ID>_ucl_ac_uk/Documents
y) Yes (default)
n) No
y/n>

If the ULR is ok, then select y and press Enter key.

13.

Configuration complete.

Then it will show you the remote you just added:

14.

Options:
- type: onedrive
- region: global
- token:{"access_token":"eyJ0eXAiOiJKV1QiLCJub25jZSI6IkxmaXR6d2hKWkVaOGstRlZqZEh
iOHFCUHZGMnFZSE8tQmpORV80d1lQWTQiLCJhbGciOiJSUzI1NiIsIng1dCI6IkNOdjBPSTNSd3FsSEZ
FVm5hb01Bc2hDSDJYRSIsImtpZCI6IkNOdjBPSTNSd3FsSEZFVm5hb01Bc2hDSDJYRSJ9.eyJhdWQiOs                                                       iIwMDAwMDAwMy0wMDAwLTAwMDAtYzAwMC0wMDAwMDAwMDAwMDAiLCJpc3MiOiJodHRwczovL3N0cy53a                                                       W5kb3dzLm5ldC8xZmFmODhmZS1hOTk4LTRjNWItOTNjOS0yMTBhMTFkOWE1YzIvIiwiaWF0IjoxNzQ1N                                                       DIxNzE4LCJuYmYiOjE3NDU0MjE3MTgsImV4cCI6MTc0NTQyNTc4OCwiYWNjdCI6MCwiYWNyIjoiMSIsI                                                       mFjcnMiOlsicDEiLCJ1cm46dXNlcjpyZWdpc3RlcnNlY3VyaXR5aW5mbyJdLCJhaW8iOiJBWFFBaS84W                                                       kFBQUF1NjJxSG1Cc1YzRk5MaElFWmxwZ3lobjB6WGJzY0hlSGZWajJHdnFEcXhockI1WTl1bXF4Z3hGS                                                       UVsZ1k2Q1psRlBqSDd1V0NKbkR0cmNaME9FQjdQcmZtcE1oQjF4L3BENEJGY1RCOVUveEZ4TXlhWFVLZ                                                       Wt0VHplcURtUkxYNi9qM1l0em5JazQvaHpzUEpXdjRoY2c9PSIsImFtciI6WyJwd2QiLCJ3aWEiLCJtZ                                                       mEiXSwiYXBwX2Rpc3BsYXluYW1lIjoicmNsb25lIiwiYXBwaWQiOiJiMTU2NjVkOS1lZGE2LTQwOTItO                                                       DUzOS0wZWVjMzc2YWZkNTkiLCJhcHBpZGFjciI6IjEiLCJmYW1pbHlfbmFtZSI6IkxhYnJhIEF2aWxhI                                                       iwiZ2l2ZW5fbmFtZSI6Ik5pY29sZSIsImlkdHlwIjoidXNlciIsImlwYWRkciI6IjE5My42MC4yMzguM                                                       TEwIiwibmFtZSI6IkxhYnJhIEF2aWxhLCBOaWNvbGUiLCJvaWQiOiJmOWU4OTBlMS1iZDBhLTQzZjctY                                                       jRmNi03NWUyZTY4ODg3OWMiLCJvbnByZW1fc2lkIjoiUy0xLTUtMjEtMjkwMjI2NTYyMS0xMDYzMDI4N                                                       jIxLTIzODE1NjE0ODAtOTcwNjUxIiwicGxhdGYiOiI4IiwicHVpZCI6IjEwMDMyMDAxQzNBQjg4MjkiL                                                       CJyaCI6IjEuQVFVQV9vaXZINWlwVzB5VHlTRUtFZG1sd2dNQUFBQUFBQUFBd0FBQUFBQUFBQUFGQUY0R                                                       kFBLiIsInNjcCI6IkZpbGVzLlJlYWQgRmlsZXMuUmVhZC5BbGwgRmlsZXMuUmVhZFdyaXRlIEZpbGVzL                                                       lJlYWRXcml0ZS5BbGwgU2l0ZXMuUmVhZC5BbGwgcHJvZmlsZSBvcGVuaWQgZW1haWwiLCJzaWQiOiIwM                                                       DQwOTM1OS03OTQ2LTg5MjItNWU5MC1hMTljZGIyNmRiODgiLCJzdWIiOiJGakhnU21hNjBTSTFZWGk4M                                                       k1qMnEtR2RhQi1mS2ZYNTJpSEE3SGJsMUljIiwidGVuYW50X3JlZ2lvbl9zY29wZSI6IkVVIiwidGlkI                                                       joiMWZhZjg4ZmUtYTk5OC00YzViLTkzYzktMjEwYTExZDlhNWMyIiwidW5pcXVlX25hbWUiOiJza2d0b                                                       mwxQHVjbC5hYy51ayIsInVwbiI6InNrZ3RubDFAdWNsLmFjLnVrIiwidXRpIjoiWE9OQ3hPYW5sazJXV                                                       0tRVnVONHJBQSIsInZlciI6IjEuMCIsIndpZHMiOlsiYjc5ZmJmNGQtM2VmOS00Njg5LTgxNDMtNzZiM                                                       Tk0ZTg1NTA5Il0sInhtc19mdGQiOiJOal9Zd1hsRG9pY0tyWnpUaS1wQWZPYjloR1RReEVFbW5ybXRHU                                                       kt6ekI0IiwieG1zX2lkcmVsIjoiMSAzMCIsInhtc19zdCI6eyJzdWIiOiJJOTdqOF9WWXljNnNhVkxWQ                                                       1UtN3hIcEI3TVdzYWJ4cW9oNnZnbWttMl9nIn0sInhtc190Y2R0IjoxMzYwODcxMzQ1fQ.F-Ma2iOnL"}
- drive_id: b!ra4Fi4CqS0GYT_qied1OV9A2pTgX9JxHhfZTS2MwNK-0r_cRHFddS7D8Yt0CozO-
- drive_type: business
Keep this "UCLDrive" remote?
y) Yes this is OK (default)
e) Edit this remote
d) Delete this remote
y/e/d>

If everything is ok., then select y and press Enter key.

Now you are ready to use Rclone!

If you are new using Rclone, please look here the basic syntax.
